SMC (Sheet Molding Compound):
Sheet Molding Compound (SMC) is a type of prepreg material. It consists of unsaturated polyester resin, a thickener, fillers (such as calcium carbonate), reinforcement materials (typically chopped glass fibers), and necessary additives (such as initiators, release agents, pigments, etc.).
It is supplied in sheet form (resembling thick carpet or linoleum), facilitating transportation, storage, and cutting.
Under heat and pressure, the resin melts, flows, and cures, while the glass fibers provide reinforcement. The result is a composite part with high strength, high stiffness, and dimensional stability.
Core Function of an SMC Mold:
To provide a precise cavity within which the SMC material is formed and cured under high temperature and pressure.
Key Characteristics and Design Requirements of SMC Molds:
High Strength and Rigidity: SMC molding pressures are very high (typically up to 100-200 bar or higher). The mold must withstand enormous clamping forces and internal pressures without deformation. Typically manufactured from high-strength steels (e.g., P20, H13, S7).
High-Temperature Resistance: Molding temperatures typically range between 130°C - 160°C. The mold must operate long-term at these temperatures without softening or suffering thermal fatigue. Steels require good thermal stability.
Precise Temperature Control: The mold requires an internal heating/cooling channel system (oil or water circuits) to ensure uniform and controllable surface temperatures across the cavity. This is critical for material flow, cure rate, cycle time, and the quality of the final part.
Precise Cavity and Dimensional Stability: The mold cavity defines the final part's shape and dimensions. SMC exhibits relatively low post-cure shrinkage (approx. 0.1%-0.3%). Mold design must precisely account for shrinkage compensation. The mold itself must maintain extremely high dimensional stability under high temperature and pressure.
Excellent Surface Finish: The surface finish of the mold cavity is directly replicated onto the part surface. Highly polished finishes, often mirror-like (Class A1/A2), are typically required to meet the high surface quality demands of applications like automotive exterior parts.
Effective Venting Design: During SMC compression, resin flow entrains air, moisture, and low-molecular-weight compounds from the curing reaction. The mold must incorporate venting channels or venting pins to allow these gases to escape efficiently. Failure to do so causes defects like bubbles and short shots.
Ejection System: Once cured, the part must be removed. The mold requires an ejection system (ejector pins, ejector plates, air ejection, etc.) and draft angles to ensure the part can be ejected smoothly and undamaged. Release agents are typically used (internal agents are added to the SMC; external agents are sprayed onto the mold surface).
Guidance and Alignment: Upper and lower mold halves require precise leader pin and bushing systems for positioning and guidance, ensuring mold closing accuracy and uniform part wall thickness.
Wear Resistance: Due to the presence of glass fibers, the mold cavity surface experiences wear. Steels must possess sufficient hardness and wear resistance.
Accounting for Material Flow: SMC formulation (fiber content, length, resin viscosity, etc.) influences its flow behavior. Mold design (runner layout, gate location, flash groove design) must optimize the material flow path to ensure complete cavity fill while minimizing flow defects (e.g., knit lines, uneven fiber orientation).
Simplified SMC Mold Workflow:
Preparation: Pre-cut SMC sheets are stacked as needed within the cavity of the lower mold half.
Mold Closing: The mold closes rapidly under the action of a hydraulic press.
Pressurization & Heating: High pressure (typically >100 bar) is applied while the mold is heated to the set temperature (130-160°C). The SMC material softens, flows, and fills the entire mold cavity under this heat and pressure.
Curing & Pressure Holding: The material is held at the set temperature and pressure for a defined time, allowing the resin to undergo cross-linking and cure solid.
Mold Opening: The mold opens.
Ejection & Demolding: The ejection system pushes the cured part out of the mold.
Cleaning / Spraying Release Agent: The mold is cleaned (if necessary) and an external release agent is sprayed (sometimes omitted).
Next Cycle: Repeat steps 1-7.
Applications of SMC Molds:
SMC molds are widely used to produce various parts requiring high strength, high stiffness, dimensional stability, corrosion resistance, and complex shapes, particularly in:
Automotive Industry: Bumpers, grilles, spoilers, hoods, step plates, battery trays, roof panels, spare tire covers.
Electrical Industry: Distribution boxes, switchgear cabinets, insulators, circuit breaker housings, motor covers.
Sanitary Ware: Bathtubs, shower trays, washbasins, toilet tank lids.
Construction Industry: Skylights, ventilation ducts, facade panels, water tanks.
Transportation: Truck components, train interior panels.

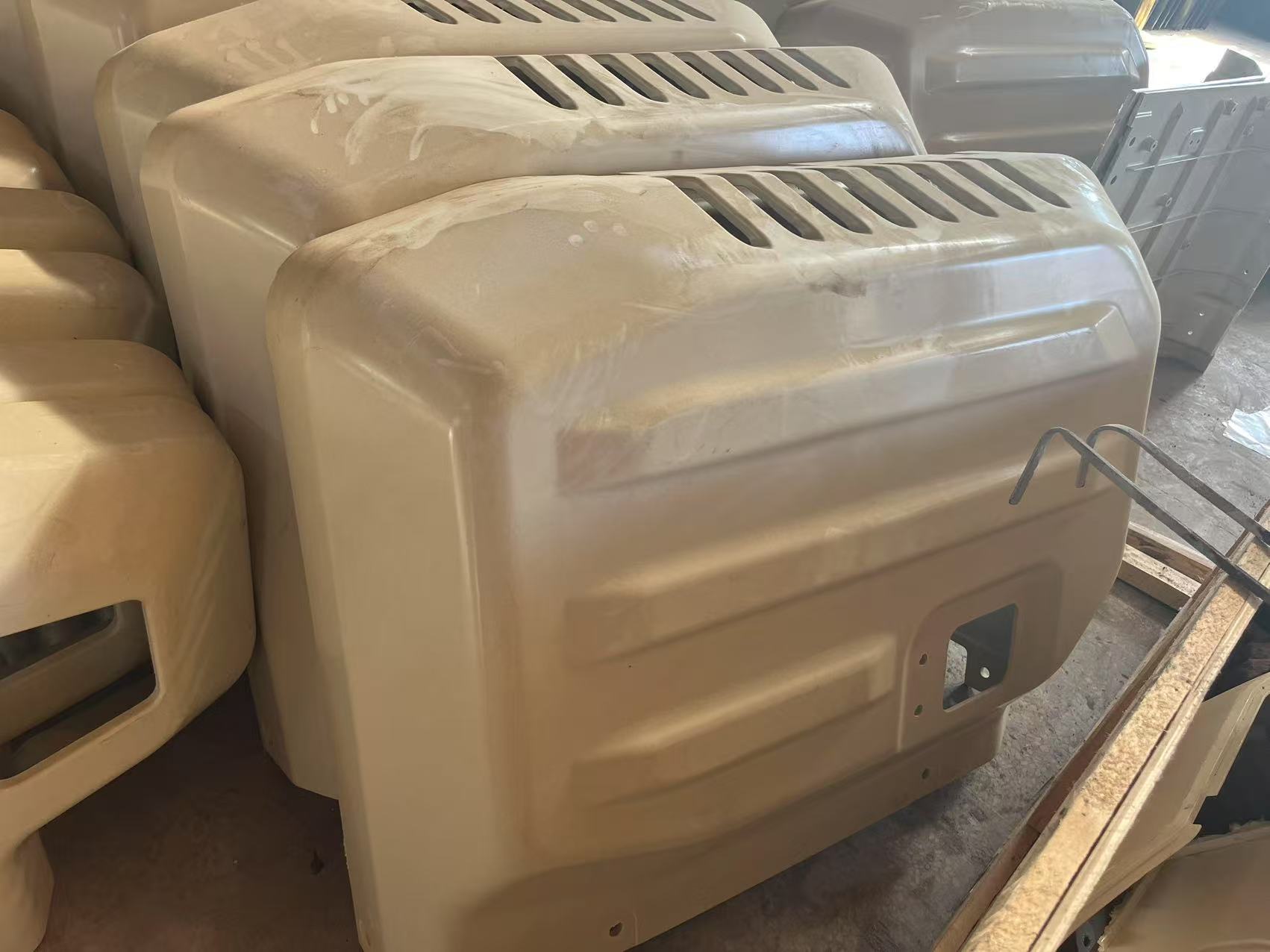

Agricultural Machinery: Tractor hoods.
Outlook: SMC's Next Stop—Industry 4.0 Intelligent Manufacturing
Driven by Germany's 'Industry 4.0' and the US 'Advanced Manufacturing Partnership,' SMC production lines are undergoing a digital leap:
AI-powered formulation optimization: Dynamically adjusts resin-fiber ratios to adapt to changing production conditions (e.g., Mercedes-Benz plant's online viscosity monitoring system);
Modular press units: 2,000-ton presses integrated with robotic cutting achieve high-volume production rates of 60 parts per hour;
Circular economy closed loop: Prompted by new EU regulations in 2024, SMC waste recycling filler technology is advancing, targeting a 95% recycling rate by 2030.
Summary:
Simply put, an SMC mold is a specialized metal mold designed for the high-temperature, high-pressure compression molding of SMC material. It features high strength, high-temperature resistance, precise temperature control, an accurate cavity, effective venting, and reliable ejection functionality. It is the core equipment for the efficient, high-volume production of high-performance SMC composite parts. The quality of its design and manufacture directly determines the final product quality, production efficiency, and cost.
