The gap between standard commercial molding and precision molding spans mere thousandths of an inch. Yet, this tiny margin exponentially impacts tooling costs, scrap rates, and your product's time-to-market. Engineers frequently default to metal-grade tolerances on plastic parts without realizing the consequences. You end up with over-engineered molds, frustrating vendor disputes, and completely blown budgets. Plastic behaves dynamically under heat and pressure, making absolute perfection an illusion.
We wrote this guide to define realistic baseline standards for your upcoming projects. You will learn how dynamic material behaviors dictate final dimensions in production. We also provide a clear, actionable decision framework. You can use it to evaluate exactly when you should pay the premium for high-precision manufacturing.
Standard commercial tolerances generally hover around ±0.005 inches, while a precision injection mold tolerance can achieve ±0.001 to ±0.002 inches depending on the resin.
Plastic is not metal; applying strict geometric dimensioning and tolerancing (GD&T) across an entire part is a common engineering pitfall that drives up costs without improving functionality.
Achieving high accuracy requires more than just advanced CNC machining—it demands predictable material shrinkage rates, robust mold temperature control, and specific gate designs.
Selecting a tooling partner requires vetting their validation processes (e.g., CMM reporting, First Article Inspection) rather than just accepting their marketing claims.
When you design plastic components, understanding baseline manufacturing limits is critical. Standard commercial molding prioritizes production speed and cost efficiency. It usually holds dimensions within ±0.005 inches. This range works well for consumer goods, basic enclosures, and non-critical internals. Conversely, you need precision molding for medical devices, aerospace components, and tight-fitting dynamic assemblies. A high-tier precision injection mold tolerance tightens this window significantly. You can often achieve ±0.001 to ±0.002 inches depending on your specific part geometry.
To maintain objectivity, the industry relies on established technical benchmarks. Frameworks like DIN 16742 and ISO 20457 provide a standardized way to evaluate plastic part tolerances. They classify acceptable variations into distinct tolerance groups based on dimension length and the specific production environment. These objective charts remove the guesswork from your drawings.

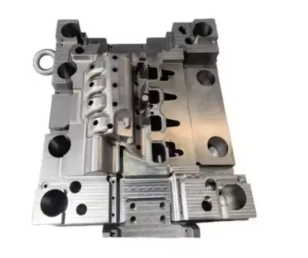

You must also distinguish between tooling tolerances and final part tolerances. The steel mold itself might be cut to a microscopic ±0.0005 inches. However, the final molded plastic part will fluctuate based on applied heat, injection pressure, and cooling rates. A perfect mold does not automatically yield a perfect part.
Many designers request "zero tolerance" on their drawings. This concept is scientifically impossible in plastics engineering. Polymers expand when heated and shrink as they cool. They warp based on complex molecular alignment. Expecting absolute rigidity from a dynamic material sets your project up for failure.
Instead, you should focus strictly on critical-to-function (CTF) features. Hold a tight tolerance on a single mating hole or a specific snap-fit mechanism. Do not apply this strictness across the entire part envelope. Restricting the whole part drives costs up immensely without adding any real functional value.
Every polymer responds uniquely to cooling temperatures and cavity pressures. This shrinkage variable fundamentally limits or enables your dimensional capabilities. When plastic cools in the mold, it naturally shrinks inward. If this shrinkage remains unpredictable, maintaining exact dimensions becomes nearly impossible. Building a reliable precision mold relies entirely on knowing exactly how your chosen resin behaves during the cooling phase.
Resin Type | Material Examples | Shrinkage Behavior | Tolerance Capability |
|---|---|---|---|
Amorphous | Polycarbonate (PC), ABS, Polystyrene (PS) | Low, highly predictable, isotropic | Excellent for maintaining tight tolerances |
Semi-Crystalline | Nylon, POM (Acetal), Polypropylene (PP) | High, unpredictable, anisotropic | Difficult to hold tight tolerances |
Amorphous resins like Polycarbonate (PC) and ABS feature a random molecular structure. They shrink less and do so evenly across all directions. This predictability makes them ideal when you need to maintain tight tolerances. Semi-crystalline resins like Nylon or POM behave quite differently. They possess highly ordered molecular structures.
They experience higher anisotropic shrinkage. This means they shrink differently in the flow direction compared to the transverse direction. When plastic fills the cavity, the polymer chains align with the flow. As they cool, they pull unevenly. This makes them highly susceptible to warp. This anisotropic behavior makes precision execution much harder.
You can mitigate these specific issues using structural fillers and additives. Adding glass fibers or mineral fillers to semi-crystalline resins improves their dimensional stability. The glass fibers resist shrinking as the plastic cools. However, you must carefully plan your gate design. Glass fibers align along the material flow path. This can cause the part to shrink differently parallel to the flow versus perpendicular to it. Recognizing this behavior aids in achieving your dimensional goals.
Moving from a ±0.005-inch requirement to a ±0.002-inch requirement is not a linear cost increase. It creates a massive, exponential cost premium. Striving for extreme precision dramatically impacts your initial capital expenditure (CapEx) for injection tooling. You pay heavily for the time, labor, and elite equipment necessary to cut perfect steel.
Tighter tolerances require much slower, highly precise machining passes. Toolmakers must use specialized Electrical Discharge Machining (EDM) to achieve fine details. EDM requires milling custom graphite or copper electrodes, which are then burned into the tool steel. This extra step eats up valuable machine hours and drastically increases labor costs.
Furthermore, molds built for tight tolerances experience faster wear during mass production. The tiny margins leave no room for natural tool degradation or abrasive wear from glass-filled resins. You will require more frequent preventative maintenance. You must also budget for iterative steel-safe adjustments over the mold's entire lifespan.
Before you commit to these expenses, perform a strict ROI evaluation. Determine if the tolerance is genuinely necessary for the part's end-use:
Mating surfaces: Usually require tighter tolerances for proper assembly.
Cosmetic features: Rarely need precision dimensions.
Internal clearances: Standard commercial tolerances often suffice completely.
Avoid over-spending by limiting your strict requirements only to areas where failure compromises product functionality.
Applying geometric dimensioning and tolerancing (GD&T) to plastics requires a paradigm shift. A common engineering mistake involves copying and pasting metal machining tolerances onto molded plastic drawings. Metal is rigid and physically machined away. Plastic is melted, injected, packed, and cooled. Expecting a high accuracy mold to overcome poor part design is a recipe for disaster.
Engineers use steel-safe design strategies to navigate shrinkage uncertainties. Toolmakers deliberately cut the tool "metal safe." They leave extra steel on the tool cavity to mold a slightly smaller plastic part. For example, if you need an inner diameter (ID) of 0.500 inches, the toolmaker might initially cut the mold pin slightly larger. This produces a smaller plastic hole. After the first mold tryout (T1), they measure the part. If the hole is too tight, they can easily grind down the steel pin to enlarge the plastic hole. You cannot put steel back if you cut the mold too large initially.
Geometry challenges easily derail linear measurements. You must watch out for specific design traps:
Thick-to-thin wall transitions cause uneven cooling rates, leading directly to sink marks and warpage.
Inadequate draft angles severely complicate part ejection, causing distortion.
Draft angles themselves make measuring exact linear tolerances difficult, as the dimension changes continuously along the taper.
Simplify your geometry to help the plastic flow and cool uniformly.
Every tooling vendor claims they "do precision." You must move beyond simple marketing buzzwords and structurally evaluate a manufacturer's actual capabilities. Producing a tight-tolerance part consistently requires an ecosystem of controlled variables.
You should verify several key capabilities before signing any contract. First, inspect their physical equipment. Do they utilize multi-axis, high-speed CNC machining centers capable of cutting hardened tool steel to tight specs? Outdated mills simply cannot hold the necessary micro-dimensions. Second, check their environmental controls. The tooling and molding facility must be strictly climate-controlled. Temperature fluctuations during the machining process will expand or contract the steel, ruining precision entirely.
Finally, mandate complete transparency regarding quality validation. Your vendor must provide comprehensive First Article Inspection (FAI) reports. They need in-house Coordinate Measuring Machine (CMM) capabilities. Relying on basic hand calipers is unacceptable for high accuracy work. They should also provide process capability index (Cpk) reporting to prove repeatability over thousands of shots. A reliable vendor will target a Cpk of 1.33 or higher, demonstrating statistically sound process control.
To shortlist candidates, initiate the quoting process with a DFM review. Gauge the vendor's pushback on your unrealistic tolerances. A trustworthy manufacturing partner will immediately tell you when a tolerance is impossible. They will propose practical design solutions rather than just taking your money.
Achieving tight dimensions requires a synchronized effort. You must meticulously balance smart part design, realistic resin selection, and elite tooling execution. Do not pay a premium for precision where standard commercial limits will suffice. Reserve those tight tolerances strictly for critical functional interfaces and mating assemblies. This pragmatic approach protects your budget and accelerates your overall production timeline.
Take the next step by auditing your current part designs. Strip away unnecessary GD&T callouts from non-critical surface areas. Submit your revised CAD files to your manufacturing partner for a comprehensive DFM feasibility review. Schedule a consultation with your tooling engineering team to dial in your CTF dimensions before cutting any steel.
A: The industry rule of thumb for standard commercial injection molding is ±0.005 inches for the first inch of part size. You typically add ±0.002 inches for each additional inch. However, these figures vary depending on the specific plastic resin used and overall part complexity.
A: Yes, it is possible to hold ±0.001 inches on specific, localized features like small diameter holes or critical mating pins. Achieving this requires highly stable amorphous resins, robust cooling designs, and highly engineered tooling. However, holding this micro-tolerance across an entire large part envelope is not practically viable.
A: Parts warp out of tolerance due to several intertwined factors. Uneven cooling rates across the mold cavity create residual internal stress. Poor gate placement forces unnatural flow orientations. Additionally, non-uniform wall thicknesses cause different sections to shrink at different rates, bending the final geometry.
A: Inconsistent mold temperatures cause the plastic to cool and shrink at varied rates from shot to shot. When shrinkage fluctuates, process repeatability becomes completely impossible. This thermal instability directly prevents you from maintaining consistent dimensions, throwing your parts out of the specified tolerance range.
