DCPD Molds, namely RIM (Reaction Injection Molding) Molds, commonly include types such as electroformed nickel molds, forged aluminum molds, cast aluminum molds, epoxy resin molds, and steel molds.

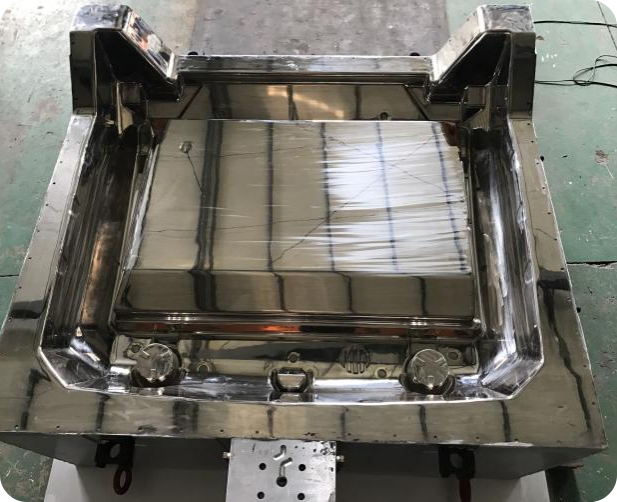

Advantages:
① Non-sticking surface: Nickel offers excellent demolding performance, effectively reducing the adhesion between the PDCPD material and the mold surface during the molding process. This makes it easier to release the product from the mold, minimizing damage or deformation caused by sticking.
② Uniform thermal conductivity: Nickel provides good thermal conductivity, ensuring a more balanced temperature distribution during the reaction injection molding of DCPD materials. This helps better control the reaction temperature, improving product quality and reducing defects such as bubbles and shrinkage marks.
③ High product quality: Electroformed nickel molds can achieve a very high surface smoothness and stable dimensional accuracy, ensuring that PDCPD products meet high aesthetic requirements, such as Class A surfaces, and maintaining high production precision.
④ Excellent durability: Nickel offers high strength, hardness, and wear resistance, resulting in a longer mold lifespan. Compared to other mold materials, it is less prone to wear-induced loss of precision during frequent use, typically lasting about twice as long as ordinary molds.
⑤ High cost-effectiveness: Although the initial investment for nickel molds is high, their durability and low maintenance costs provide long-term economic advantages.
Disadvantages:
① Long processing cycle: Electroformed nickel molds require the production of a master mold, and the electroforming process is complex and time-consuming, generally taking about 100–120 days.
② Manufacturing limitations: The electroforming process depends on the size of the electroforming tank, which may pose challenges for manufacturing large molds due to the lack of sufficiently large tanks.
③ Difficulty in secondary processing: Once an electroformed nickel mold is completed, the cavity surface generally cannot be modified or redesigned.

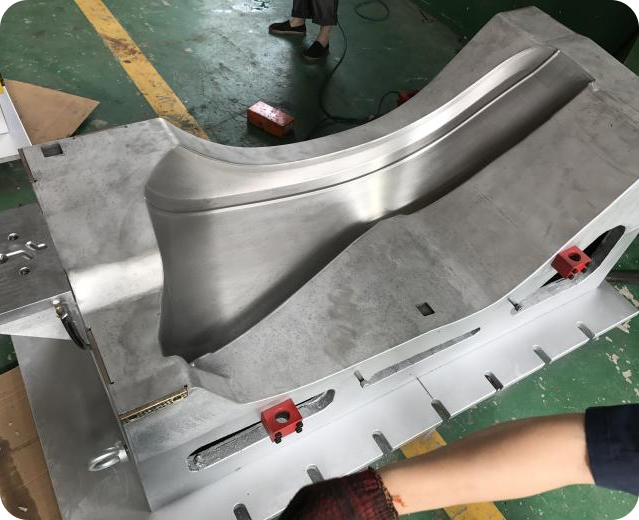

Advantages:
① High strength and hardness, good wear resistance, suitability for long-term production needs, and resistance to deformation, ensuring stable product dimensional accuracy.
② Shorter manufacturing cycle and ability to achieve good surface smoothness, making them suitable for products with high aesthetic requirements.
③ Lightweight, reducing equipment load due to the low density of aluminum.
Disadvantages:
Relatively high cost, especially for products with complex structures or large variations in cavity depth, where manufacturing costs can be significant.

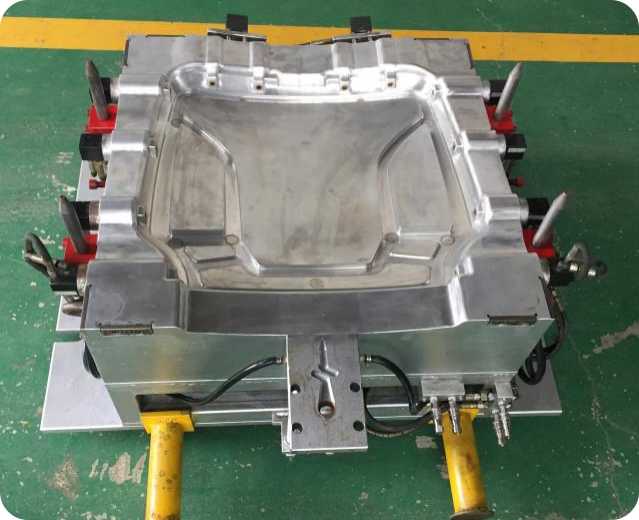

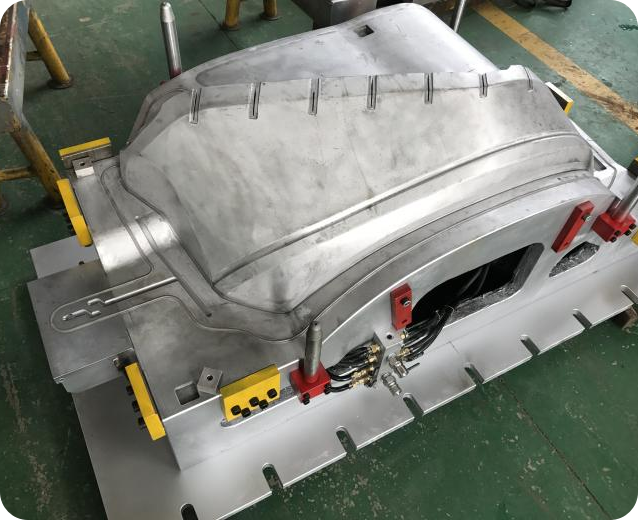

Advantages: Shorter manufacturing cycle and lower cost compared to forged aluminum molds.
Disadvantages: Overall performance is inferior to forged aluminum molds. If the entire mold is cast aluminum, the surface smoothness is poorer than that of nickel and forged aluminum molds. Both the A-side and B-side surfaces tend to be rough, and the A-side may even have minor sand holes, requiring post-processing. Suitable for products with low smoothness requirements.

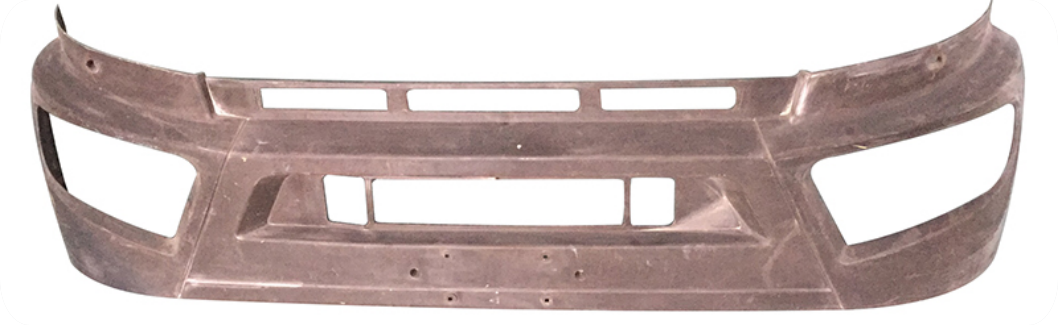

Advantages:
① Low cost and short production cycle. The manufacturing process is relatively simple, allowing for quick and economical mold development, making it suitable for small-batch production.
② Ideal for short-term projects or rapid prototyping, often used for trial molds when product performance strength is uncertain.
Disadvantages:
① Poor wear resistance. Frequent use can lead to surface wear, making it difficult to control product wall thickness and ensure dimensional accuracy.
② Limited lifespan, typically producing only a few hundred to a few thousand products. Additionally, epoxy resin molds have poor thermal conductivity, resulting in imprecise temperature control. This can lead to uneven curing and insufficient surface smoothness in the products.

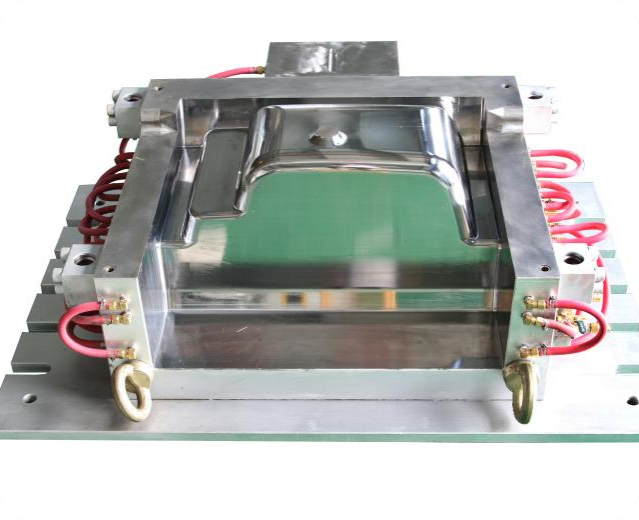

Advantages:
① Durability: Steel molds are highly durable due to their material properties, offering excellent wear resistance and a long service life.
② Good surface smoothness.
Disadvantages:
① Poor corrosion resistance: Long-term production with PDCPD materials can cause surface corrosion and rusting on the mold, ultimately leading to defects in the product surface.
② Heavy weight and low flexibility: The high density of steel increases the equipment load.
| Mold Type | Cavity: Electroformed Nickel Core: Cast Aluminum | Cavity: Forged Aluminum Core: Forged Aluminum | Cavity: Forged Aluminum Core: Cast Aluminum | Cavity: Cast Aluminum Core: Cast Aluminum | Cavity: Epoxy Resin Core: Epoxy Resin | Cavity: P20 Steel Core: P20 Steel |
|---|---|---|---|---|---|---|
| Service Life (shots) | Approx. 100,000 | Approx. 50,000 | Approx. 50,000 | Approx. 20,000 | Approx. 2,000 | Approx. 60,000 |
| Manufacturing Cycle (days) | 100-120 | 40-65 | 40-65 | 40-65 | 15-25 | 40-65 |
