Blow molding is a common plastic forming process widely used to manufacture hollow plastic products. It involves heating plastic material to a molten state and then using air pressure to inflate it into the desired shape within a mold. This key technology enables the mass production of plastic bottles and packaging – from the water bottles you drink from to the detergent bottles in your laundry room. Furthermore, there are several types of blow molding processes, each with its unique characteristics and applications.
Extrusion Blow Molding (EBM)
Injection Blow Molding (IBM)
Stretch Blow Molding (SBM)
Plastic pellets are heated and extruded to form a hollow tube of molten plastic (called a parison).
The parison is clamped within a mold, and air is blown into it via a blow pin, causing it to inflate and conform to the mold cavity walls, taking the desired shape.
After cooling, the mold opens, and the finished part is ejected.
Milk jugs
Detergent bottles
Automotive ducts and fluid reservoirs (e.g., washer fluid tanks)
Excellent for producing large hollow parts.
Handles a wide range of plastics (HDPE, PP, etc.).
Capable of producing complex shapes with features like handles or wide mouths.
Less precise wall thickness control compared to other methods.
Not the preferred method for PET bottles requiring high clarity and strength.

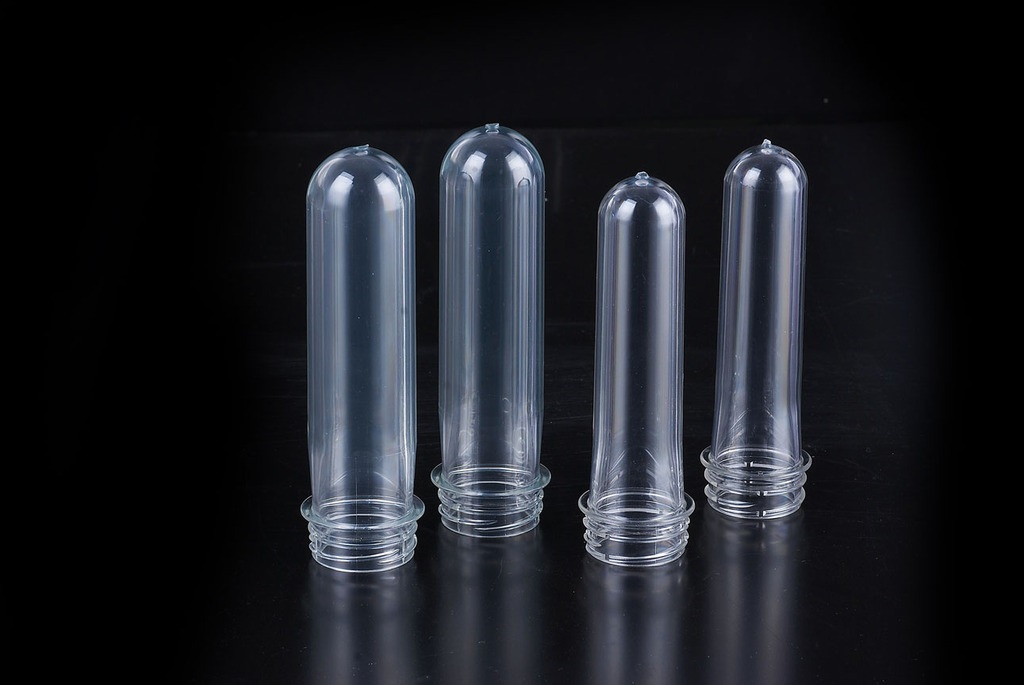

Plastic is injection molded to form a precise preform.
The preform is transferred to a blow mold.
Air is blown into the preform, inflating it to the final shape.
After cooling, the finished container is ejected.
Pharmaceutical bottles
Cosmetic containers
Small personal care bottles (e.g., travel sizes)
Produces bottles with very high dimensional consistency.
Ideal for small to medium-sized containers.
Not suitable for large containers or high-volume beverage production.
Cycle times can be slower compared to extrusion blow molding for larger parts.

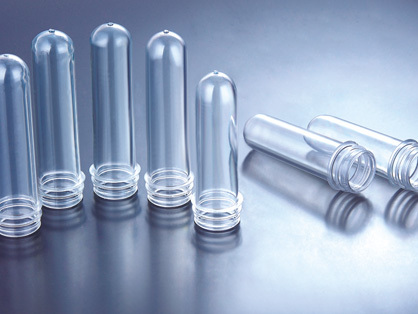

Plastic material is injection molded into a preform.
The preform is reheated and placed into a blow mold.
The preform is simultaneously stretched axially (lengthwise) by a mechanical rod and stretched radially (outward) by air pressure, forming it into the final bottle shape. This biaxial orientation enhances material properties.
After cooling, the finished bottle is ejected.
Single-Stage Stretch Blow Molding: Preform injection molding, conditioning (cooling/reheating as needed), stretching, and final blowing into a bottle – all performed sequentially within one machine. Typically used for medium-to-low volume production or specialized bottle shapes.
Two-Stage Stretch Blow Molding (TSBM): Preforms are produced separately, stored, or transported as needed. They are later reheated and blown into bottles using dedicated SBM machines. This is the method employed by PET Technologies blow molding machines. These machines are ideal for high-speed, large-scale PET bottle production. This approach offers greater flexibility in preform sourcing, ensures faster production rates, and achieves highly consistent bottle quality.
Mineral water bottles
Soft drink bottles
Juice and dairy packaging bottles
Cooking oil bottles
Produces lightweight bottles without compromising durability.
High production speeds achievable.
Significant flexibility in bottle design.
The stretching process enhances bottle strength and clarity.
Primarily limited to PET and some specialty plastics.
Requires preform sourcing or in-house preform production.
